Jenbacher Type 4 420 P3 Generator Spark Plug 347257 401824 639754 462203 462199 639753 P3V5N1

Operation:

The plug is connected to the high voltage generated by an ignition coil or magneto. As the electrons flow from the coil, a voltage difference develops between the central electrode and side electrode. No current can flow because the fuel and air in the gap is an insulator, but as the voltage rises further, it begins to change the structure of the gases between the electrodes. Once the voltage exceeds the dielectric strength of the gases, the gases become ionized. The ionized gas becomes a conductor and allows electrons to flow across the gap. Spark plugs usually require voltage of 12,000–25,000 volts or more to 'fire' properly, although it can go up to 45,000 volts. They supply higher current during the discharge process resulting in a hotter and longer-duration spark.

As the current of electrons surges across the gap, it raises the temperature of the spark channel to 60,000 K. The intense heat in the spark channel causes the ionized gas to expand very quickly, like a small explosion. This is the 'click' heard when observing a spark, similar to lightning and thunder.

The heat and pressure force the gases to react with each other, and at the end of the spark event there should be a small ball of fire in the spark gap as the gases burn on their own. The size of this fireball or kernel depends on the exact composition of the mixture between the electrodes and the level of combustion chamber turbulence at the time of the spark. A small kernel will make the engine run as though the ignition timing was retarded, and a large one as though the timing was advanced.

Specifiions:

1. Deliver maximum performance
2. More complete combustion,
3. Greater power and higher fuel efficiency.

Cross reference:

• Jenbacher P3.V3 347257
• Jenbacher P3.V5 401824
• Jenbacher 639754
• Jenbacher 462203
• Jenbacher 462199/P3.V3N1
• Jenbacher 639753
• Jenbacher GS 420 312

Apply for:

• CHP Gas Engine
• Cogeneration Plants
• Power Plants
• Power House
• Cogeneration generator

Packaging and delivery:

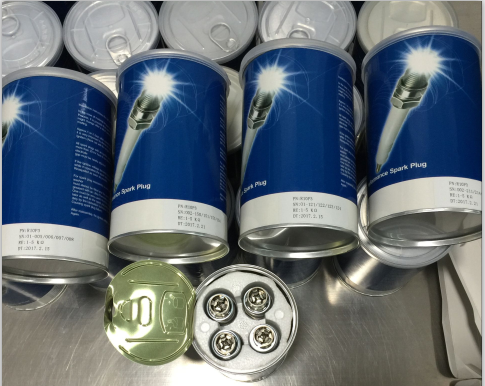

1. 4PCS in a Tin, with carton box.
2. By DHL express, by air or according customers' request.

Company Profile:

TAKUMI is the No.1 spark plug manufacturer in China since 1961, with ISO 9000,TS 16949 Quality System Certifiion. The high quality of our products is the same as famous brands all over the world, while our price is more competitive.

Our Advantages:

1. Over 50 years experiences in auto parts

2. Products under ISO9001, TS 16949 quality system certifiion

3. Good raw material and advanced technology to ensure high quality

4. Diversified products with reliable performance and competitive factory price

5. Strict on quality and 100% inspection

6. Professional technical support and service.

TAKUMI Japan Auto Parts Co., Ltd.

Takumi. A Symbol of Quality & Reliability

Takumi Japan is an automotive group consisting two business sections: traditional auto parts section & new energy electric vehicles section.

Takumi Japan auto parts business section is specialized in design, manufacture and marketing of Igntion system parts, Filtration system parts & Hybrid Batteries throughout the world. Taking advantage of the leading technologies, products from Takumi Japan have been obtaining very good reputation and gaining customers' satisfaction.

Takumi Japan has developed a professional team for international markets and been regularly participating at major international exhibitions to help our customers to be famous in local markets.

Takumi Japan cover following families of products:

Igntion system parts: spark plugs, ignition coils, igntion wire sets, ignition controllers

Spark plugs: Copper classic & Iridium platinum tipped for automobiles, motorcycles, garden machinaries, gas generators & other special applications.

Ignition coils: Coil-Near-Plug(CNP), Coil-On-Plug(COP), Stick Coil for automobiles & gas generators.

Ignition cables: Low resistance cable with silicone rubber or teflon for automobiles & gas generators.

Ignition controllers: Ignition control timing for gas generators with 4,6,8,12,16,20 cyliners.

Filtration system parts: oil filters, air fuel filters, fuel filters and cabin filters.

Oil filters: for filtration of engine oil, hydralical oil & all kinds of vehicles and machinaries.

Fuel filters: for all kinds of gasline and disel fuel.

Air filters: for all kinds of vehicles and machinaries.

Cabin filters: for all kinds of vehicles, machinaries & air cleaners.

Hybrid batteries: full applications including but not limited to Toyota camry prius lexus, Honda accrod insight civic fit & Ford fusion. Guaranteed quality with warranty and OE performance.

Takumi Japan new energy electric vehicles business section consists of two divisions: Low Speed Electric Vehicles(LSEV) Division & High Speed Electric Vehicles.
