    Prechamber spark plug MWM 12453562 BIOGAS 12344096, 12343755 for MWM and

    Ask Lasest Price
    Brand Name : TAKUMI
    Model Number : S-R6A15
    Price : By discuss
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Piece/Pieces per Month
    Delivery Time : 35 days working days
    • Product Details
    • Company Profile

    Prechamber spark plug MWM 12453562 BIOGAS 12344096, 12343755 for MWM and

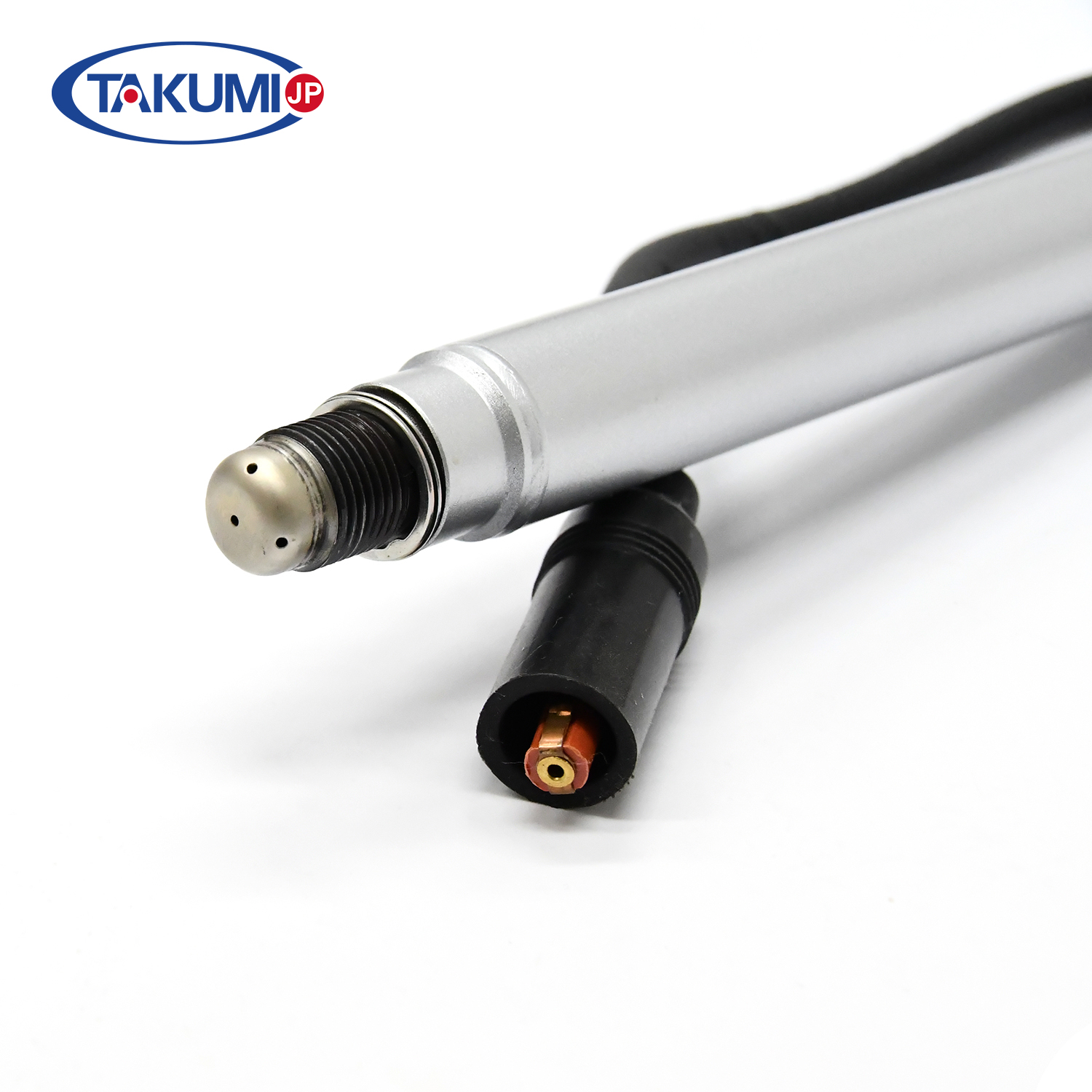

    Prechamber generator spark plug TAKUMI type S-R6A15 replace deutz 12343055 TCG 2016


    TAKUMI TypeS-R6A15

    Thread

    M18*1.5

    Reach

    26 mm

    Hex

    22.2 mm

    Seat Type

    Flat

    Gap

    0.3 mm

    Electrode Type

    Prechamber

    Cable length

    310mm

    Shielded length

    196mm

    Resistor or Non-Resistor

    Resistor
    Notes:

    Shielded replace 1234-3055 for

    TCG 2016

    The ultimate MWM / erpillar genuine biogas spark plug for your CHP gas engine TCG 2016 / TCG 3016 and erpillar CG 132.
    New part numbers launched by MWM / .
    Genuine MWM / erpillar prechamber spark plug for the biogas operation of cogeneration plants.
    OE replaced old numbers: MWM / 1234-4096 / 1245-3562 / 1234-3755 / 1234-3055.


    Suitable for use in the following MWM and erpillar gas engines:

    MWM (current PN: 12453562):
    - TCG 2016 V8
    - TCG 2016 V12
    - TCG 2016 V16 A-B-C
    - TCG 3016

    erpillar / (current PN: 12453546):
    - CG 132 V8
    - CG 132 V12
    - CG 132 V16

    Original 5 - hole Prechamber Spark Plug AR36 Brand: MWM / erpillar Energy Solutions.
    Please check the ONERGYS brand label ONE470 biogas spark plug for MWM gas engines chp TCG2016.
    Article number 30000470.


    Cross-References:

    MWM:
    1245-3562 / 12453562 / 1245 3562
    1234-3755 / 12343755 / 1234 3755
    1234-3055 / 12343055 / 1234 3055
    1234-4096 / 12344096 / 1234 4096
    1231-9475 / 12319475 / 1231 9475
    1234-2668 / 12342668 / 1234 2668

    erpillar / :
    1245-3546 / 12453546 / 1245 3546
    1234-4096 / 12344096 / 1234 4096
    2G:
    32090-00017 / 3209000017 / 32090 00017
    Storm:
    0190880022




    Production line







    MWM TCG 2016 V08, V12, V16 Gas Engine – Efficiency across the board!

    Compelling arguments – Features at a glance.

    • Output range from 400 to 800 kWel
    • High Flexibility
    • Runs on all gas types: natural gas, biogas, landfill gas, sewage gas, mine gas, etc.
    • Mainly used for biogas plants and small CHP plants in Europe
    • Highest electrical efficiency in the output range up to 1,000 kWel
    • More than 1900 power generators with approximately 1,000,000 kWel already installed around the globe
    • Low installation and operating costs

    Description – MWM Gas Engine TCG 2016

    Consumes up to 15 Percent Less Gas than Comparable Gensets Thanks to Its Best-of-Class Efficiency

    • Special piston variants with different compression for biogas and natural gas operation
    • Optimized gas exchange and camshaft, spark plugs with integrated pre-combustion chamber
    • Even load balancing over the individual cylinders enables higher load level and maximum utilization of the engine reserves in terms of output and efficiency
    • New closed crankcase ventilation optimizes combustion and increases efficiency by utilizing the blow-by gas
    • Consistent downsizing of dead spaces improves complete combustion of the gas mixture, resulting in reduced fuel consumption and HC- and CO-emissions and higher efficiency

    Long Service Intervals

    • Longest time interval until major overhaul compared to competitors
    • Use of Xchange components enables time savings of up to 75 percent during the major overhaul, resulting in reduced costs
    • Turbocharger for TCG 2016C series, depending on application with water-cooled bearing housing, thus reducing maintenance costs for turbocharger
    • No contamination of the turbocharger compressor thanks to the improved separation of gas and liquid phase, resulting in longer maintenance intervals

    Very Low Lubricant Consumption

    • With its lubricant consumption of only 0.1 – 0.2 g/kWh, TCG 2016C sets competitive standards
    • Lubricant savings of up to 50 percent compared to competitors
