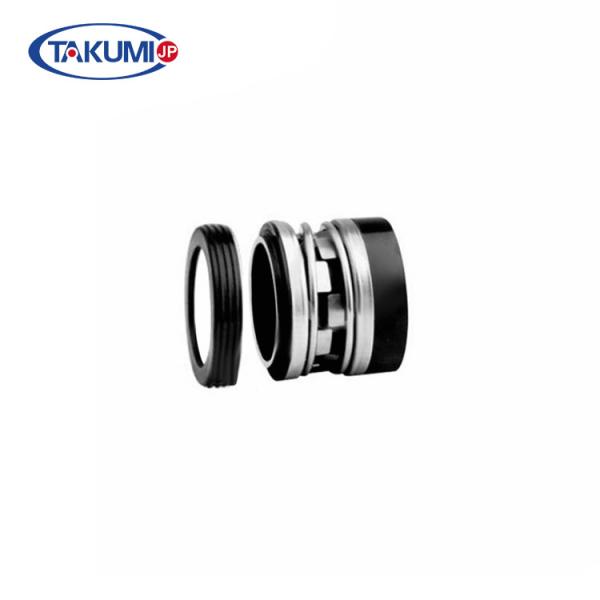

Customizable 6 Bar Pressure Water Pump Shaft Seal

TAKUMI JAPAN AUTO PARTS CO.,LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Customizable 6 Bar Pressure Water Pump Shaft Seal from wholesalers

    Buy cheap Customizable 6 Bar Pressure Water Pump Shaft Seal from wholesalers
    • Buy cheap Customizable 6 Bar Pressure Water Pump Shaft Seal from wholesalers

    Customizable 6 Bar Pressure Water Pump Shaft Seal

    Ask Lasest Price
    Brand Name : TAKUMI
    Model Number : C12C10AMN
    • Product Details
    • Company Profile

    Customizable 6 Bar Pressure Water Pump Shaft Seal

    Manufacturer mechanical seal on pumping ring in mechanical seal mechanical seal for pump


    Design Structure:Operating limits:
    1. Dependent on the direction of rotation1. Pressure:6bar
    2. Single face2. Temperature-30-200°C
    3. Unbalanced3. Speed: ≤15m/s
    4. Rubber bellows4. Shaft size:10~25.4mm
    5.Sealing face:Silicon carbide,Carbon,TC
    6.Secondary Sealing:FKM,NBR,PTFE,EPDM
    7.Mental component:316L, 304

    Customizable 6 Bar Pressure Water Pump Shaft Seal

    Packing Details :

    1. Inner packing:small box with plastic paper inside
    2. Outer packing: carton box
    3. Customized packing is also available
    Delivery Time:30 days after receiving payment
    Elastomer bellows seal for water pump burgmann replacement mechanical sealElastomer bellows seal for water pump burgmann replacement mechanical sealElastomer bellows seal for water pump burgmann replacement mechanical seal

    Superior Raw Materials:


    All the raw materials shall be stored only after the serious inspection and corresponding inspection report.


    Mold:


    Customized mechanical seals can be manufactured according to your samples or drawings


    Inspection:


    Strict QC system to control product quality during whole production.


    Regular inspection shall be conducted on those semi-finished products in the process of producing so as to ensure the scientificness of our technique and the controllability of the inferior products.


    Pre-shipment:


    100% quality control before shipment


    Quality Management:


    The professional Quality Management is the guarantee of your satisfaction for the appearance and specifiion of our products.


    FAQ

    Q1Are you a factory or a trading company?
    AWe are a professional factory with 10 years of experience in designing and manufacturing mechanical seals and wear-resistant materials.
    Q2Can I get an sample to check the quality of products?
    AYes. We can send you samples to check the quality within 3-5days.
    Q3Do you provide free samples?
    AWe can provide free samples, but you need to pay for the freight to your destination.
    Q4What payment terms do you accept?
    AWe accept T/T, Western Union, Paypal and Escrow, L/C, etc.
    Q5I can not find our products in your alog. Can you make customized products for us?
    AYes. Customized products are available according to your drawings or working conditions.
    Q6Could you design it if I don’t have drawings or pictures for custom products?
    AYes,we can make the best suitable design in accordance with your application and working conditions.

    Mechanical Seal Introduction
    WB2 series adppts perfluoroethylene bellows.It is designed with multi-spring structure.The spring of WB2 type is protected threugh a perfluoroethylene cover.This mechanical seal is one of the most commonly used seals for corrosion resistant pumps.
